filmQA pro™ step-by-step picket fence test

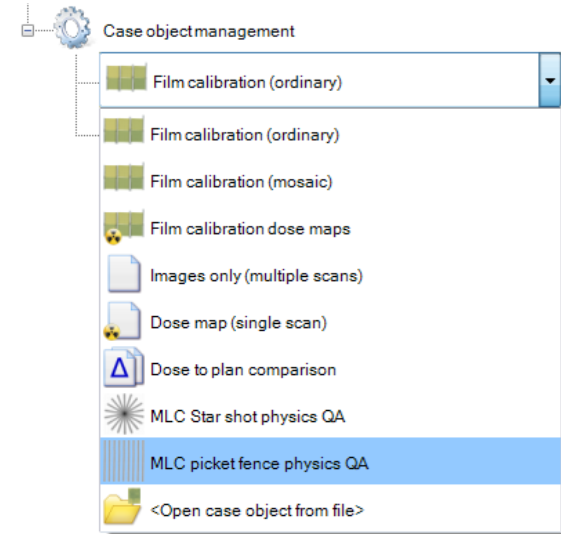

Add a ‘MLC picket fence physics QA’ object to your case.

Select the 'MLC picket fence physics QA

Acquire the Picket Fence image - either read it from file or scan it directly.

Key to Picket Fence icons.

Image Registration

For automated image Registration select the fiducial tool and mark the fiducial positions at the picket fence image as shown below. Any number of fiducials can be used to identify the isocenter. However, the minimum number to determine both x, y shift and rotation is 3 fiducials.

Screenshot of the fiducial marker on the Image Registration screen.

Tip: To move the fiducial marker Icon for fiducial marker., select it and either drag it with the mouse pointer or use Ctrl+Arrow keys. To delete a fiducial marker, select it and press Del key.

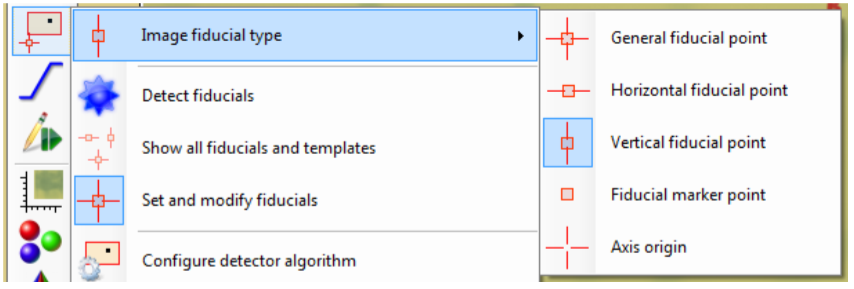

To change the fiducial type open the fiducial tool and select the wanted type.

Select the 'Vertical fiducial point' option.

General fiducials are used to fit both a and y axis of the isocenter, Horizontal fiducials fit only the y coordinate.

When all fiducials are marked, select the tool “MLC picket fence physics QA” in the case tree.

The isocenter (blue/black dashed lines) is automatically fitted to the marked fiducials as shown below.

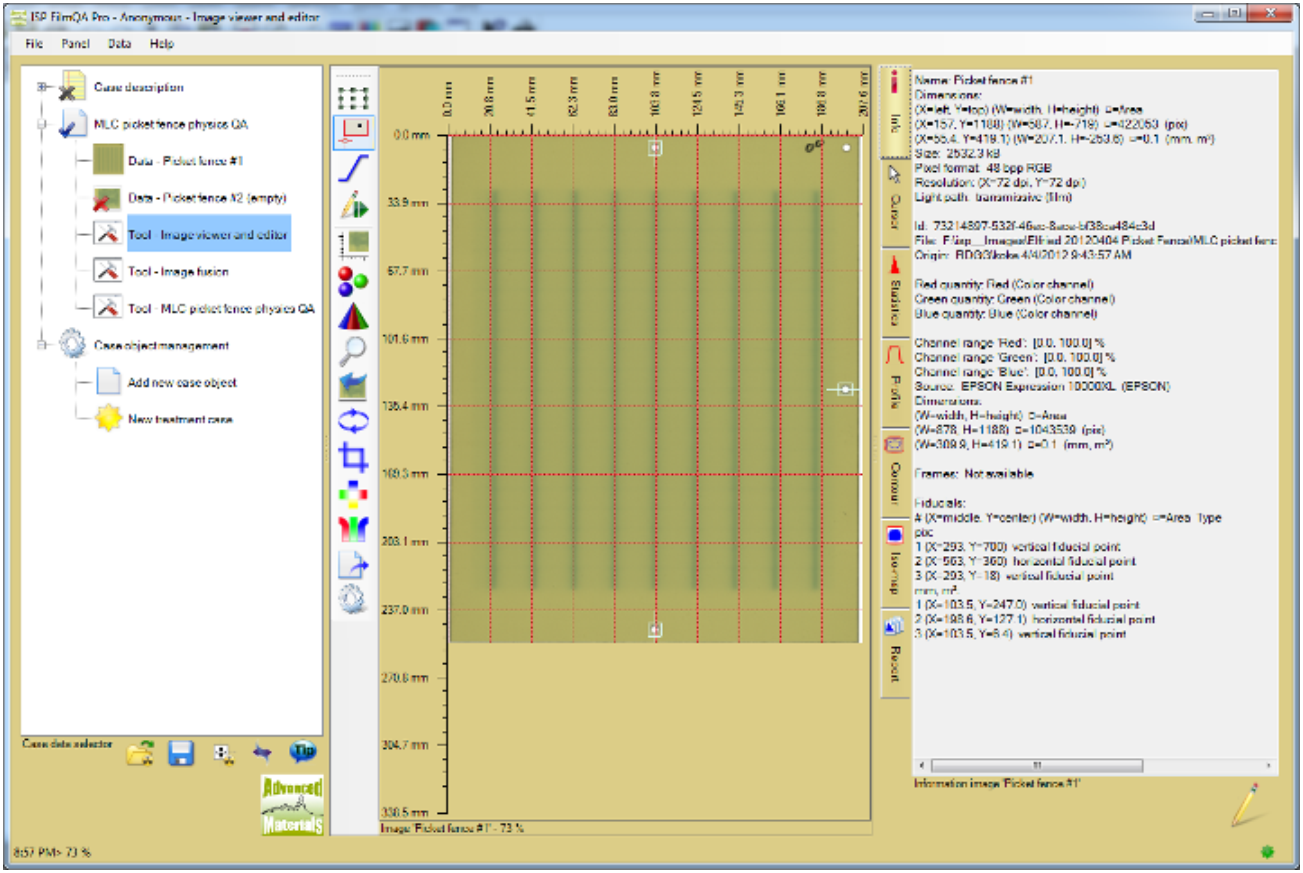

Screenshot of MLC picket fence physics QA tool.

Tip: Isocenter can fitted with other options using the fiducial fitter tool Icon for Fiducial Fitter Button

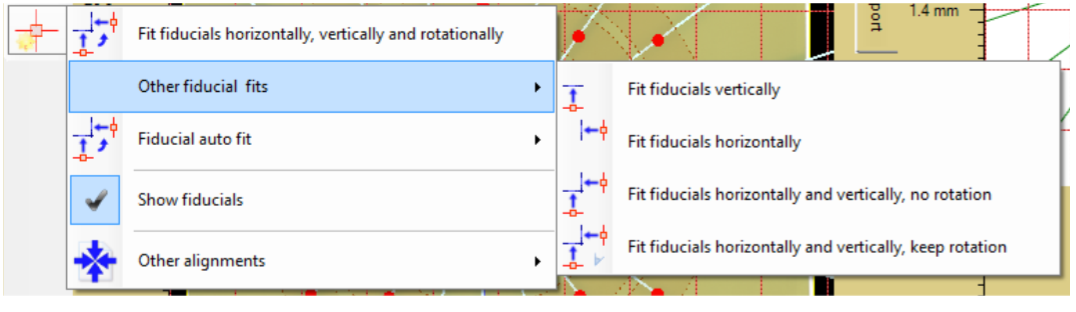

Screenshot of fiducial fit options.

Tip: To make isocenter lines better visible turn off the maximum contrast color leveling as shown below.

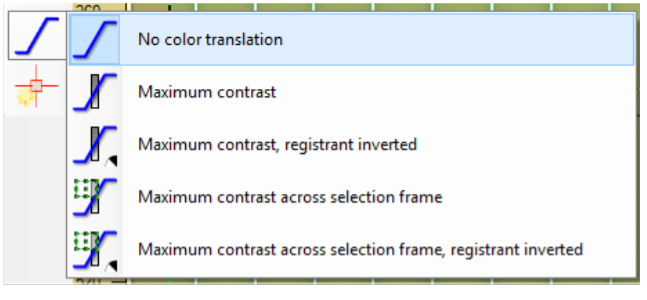

Screenshot of 'No color translation' option.

Beam Line Detection

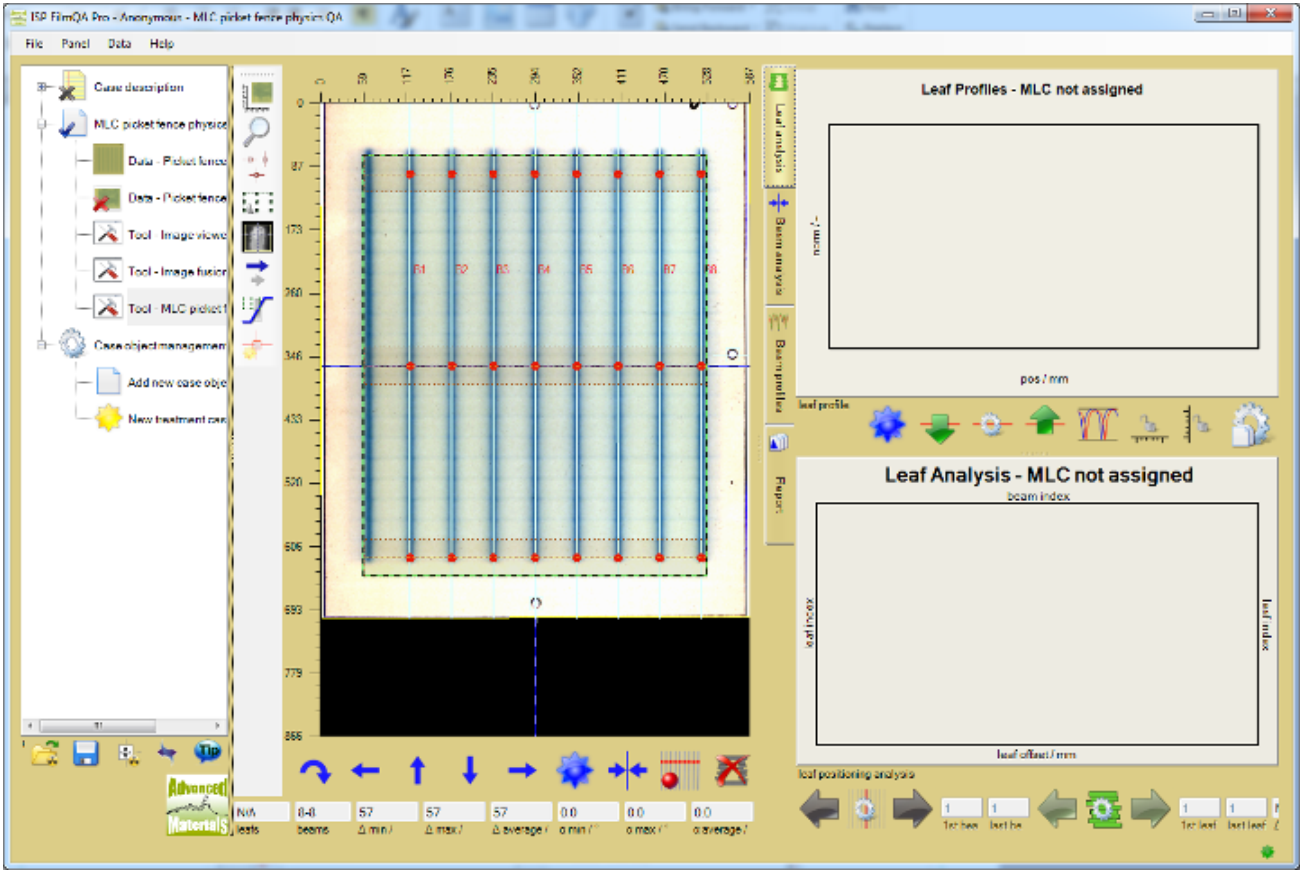

The picket fence analysis tools automatically detects the beam lines and displays the detected beam line points at the analysis path lines as shown below in the center section. The beam line detection uses the selected region of interest (green dashed rectangle) to analyze the image data. Select the Icon for beam line detection button. button to make this region of interest editable and click and drag the border lines so that only beam lines are covered as shown in the screen shot below.

The beam profile tab at the right shows the profiles along the selected analysis path lines and the detected extrema points.

The center section includes the following items:

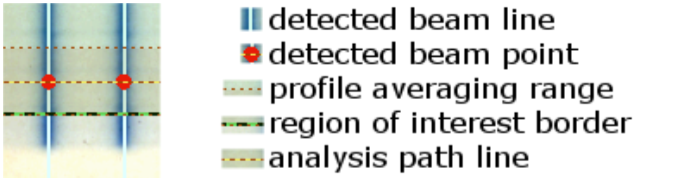

Key to beam line detection icons.

The “Beam profile” tab at right shows the profile along the analysis path lines and the detected extrema. The Icon for beam profile button. button allows to change the detection parameters. Default settings are optimized for the use of EBT3 films. Most important parameters are as follows.

  • Analysis color channel: Signal used to generate profile. Red channel is most sensitive for EBT film. Red/Blue ratio compensates for EBT film thickness variations.
  • Beams are darker then background: Beam line are described by profile minima—otherwise maxima are used.
  • Beam alignment: Allows to synchronize beam lines (angle and distance).
  • Detection mode: Method used to detect extrema along the profile curve.
  • Number of analysis lines: More lines stabilize then results but consume more computer performance
  • Analysis path with: Wider range delivers smoother profiles. Path range cannot exceed visible beam line area.

Underneath the center registration image the beam line statistics is displayed including minimum, average and maximum distance of the detected beam lines as well as the minimum, average and maximum of the slant angle.

MLC Design

Select the design of the MLC using the Icon for MLC design button. buttons context menu as shown below:

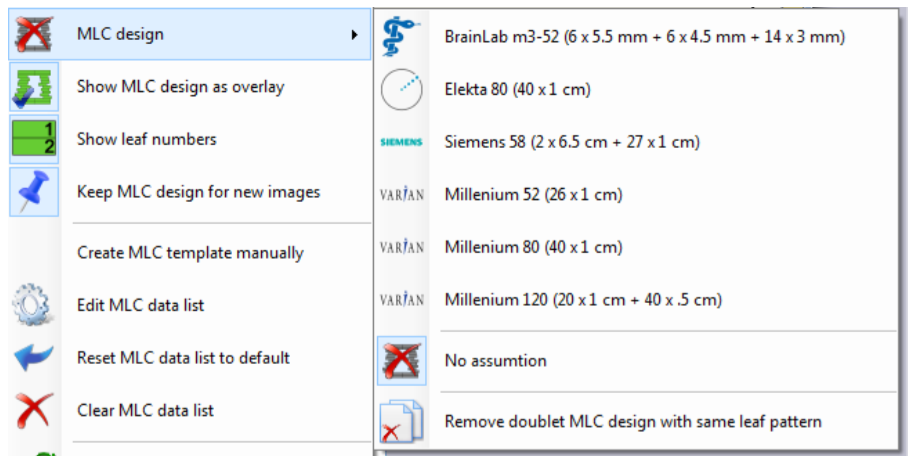

Screenshot of MLC design options

The example uses a Varian Millennium 80 MLC.

If the targeted MLC design is not available use “Create MLC template manually” to input new data.

When the MLC design is select it is displayed as overlay in the center section.

Use the Icons for adjustment up and down arrows. button to adjust the image position relative to the MLC so that leaf borders on the film line up with the overlaid MLC leaf borders (solid blue lines, dotted blue lines are leaf center lines).

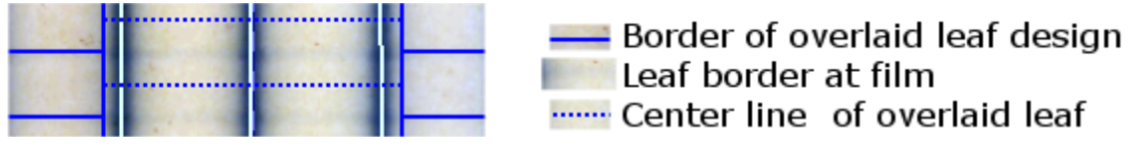

Solid blue line represents border of overlaid leaf design. Gray represents leaf border at film.  Dotted blue line represents center line of overlaid leaf.

Leaf Analysis

The space around the leaf center line is used the create profiles to detect the leaf openings as extrema. Select the “Leaf analysis” tab to commence the analysis.

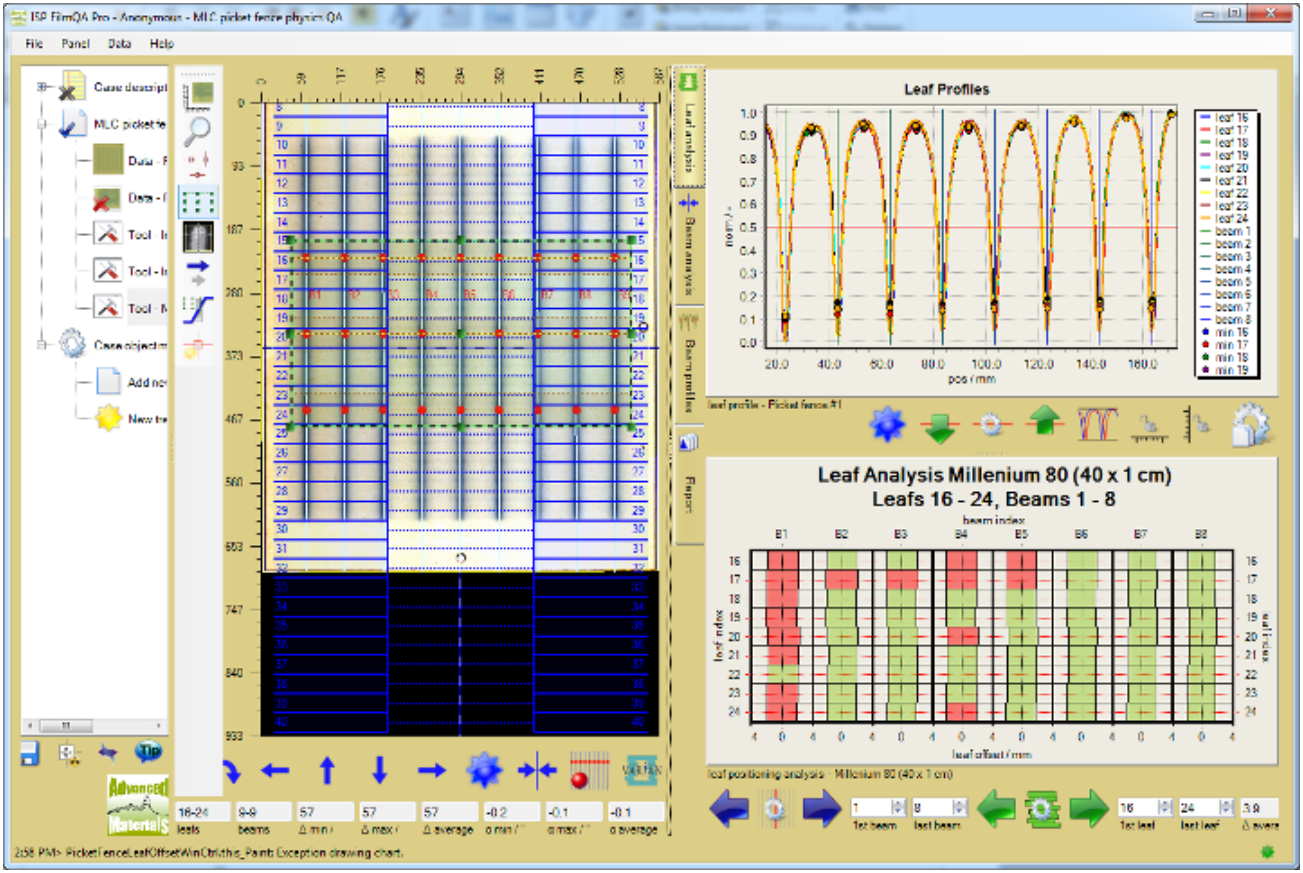

Screenshot of leaf analysis tab.

The upper part of the “Leaf analysis” tab show the profiles along the center lines for the selected leaf and beam ranges (bottom row). One can only select leafs located inside the region of interest selected in the center section (green dashed rectangle) and for detected beams (red number labels).

The leaf openings are determined as intersection of the profiles with a threshold value (red line in the upper chart). This detection threshold can be adjusted using buttons.

Screenshot of adjustment interface for the detection threshold.

The profile values might vary due distortion of the measurement as well as due to the fact that the measurement actually determines dose equivalent value what can bias the shape of the scanned profile. To account for such deviations FilmQA Pro offers the following profile normalization options:

Normalize global minimum and maximum to 0 and 1: Global extrema for each leaf center profile are normalized to 0 and 1 to account for (small) drifts across the image.

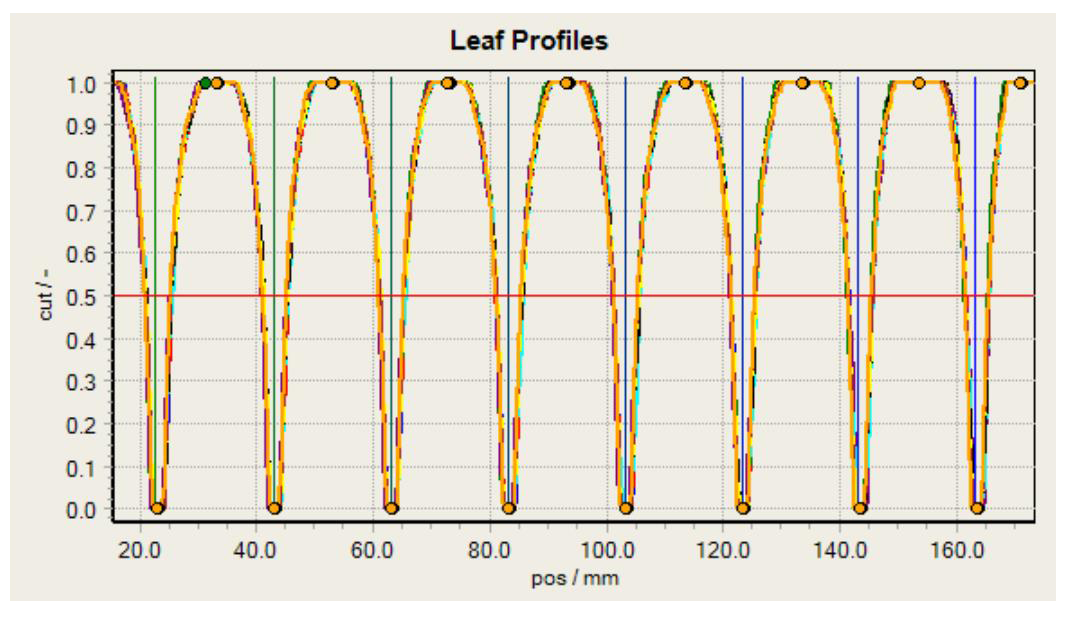

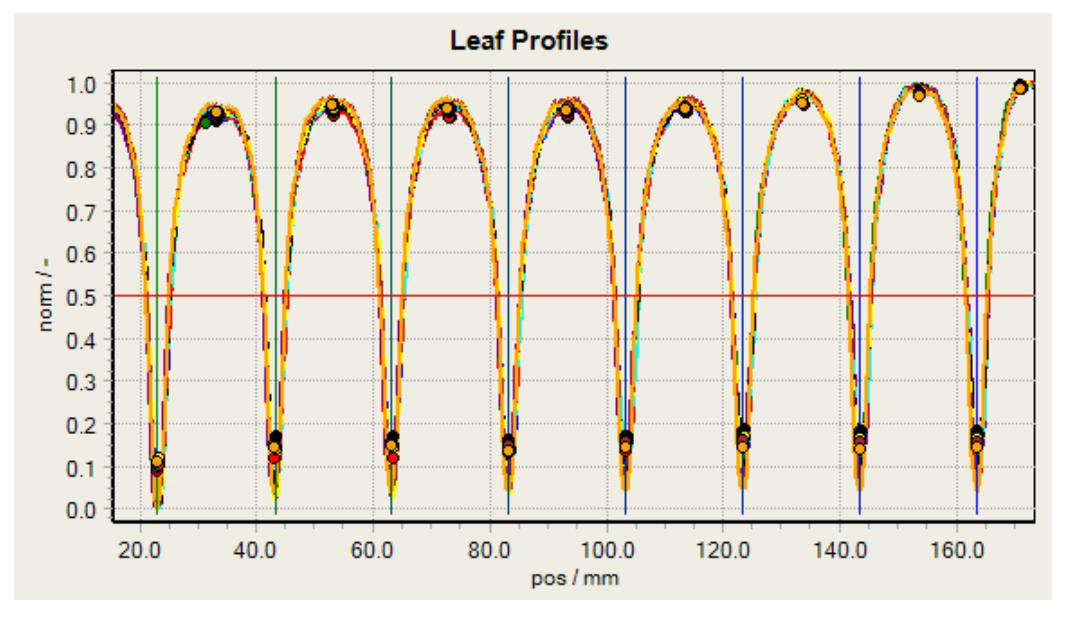

Screenshot of Leaf Profiles chart

Equalize all local minima and maxima to 0 and 1: Normalization changes for each beam and leaf extrema pair and equalizes all profile sections, all maxima are at 1 and all minima are at 0.

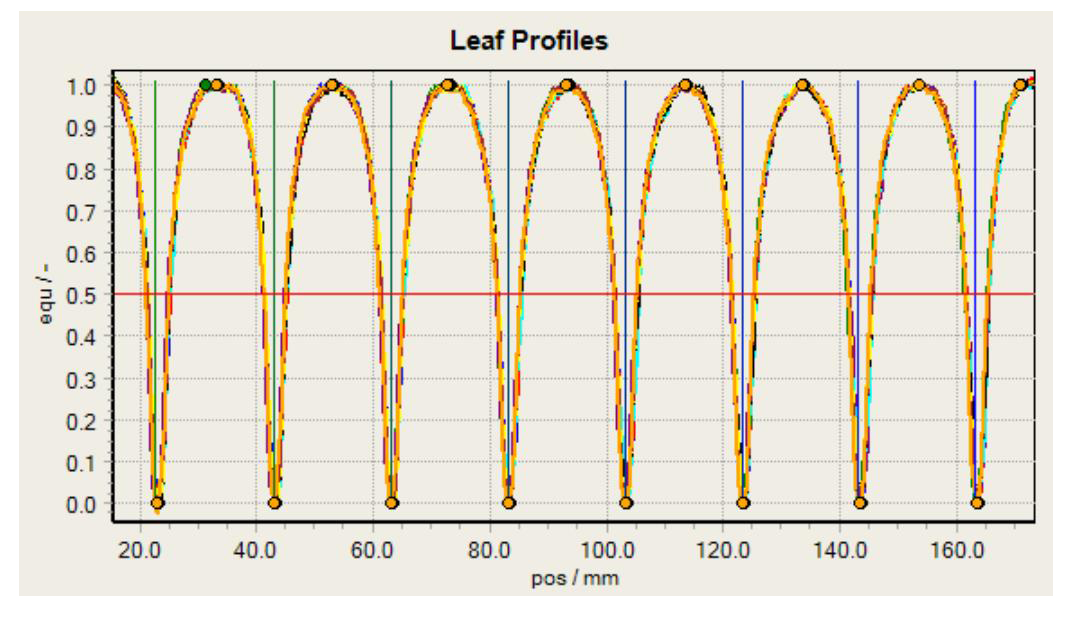

Screenshot of Leaf Profiles chart

Truncate at smallest local minimum and maximum values and normalize to 0 and 1: Truncate lower part of the profile at highest minimum and upper part of the profile at lowest maximum and normalized resulting profile to 0 and 1. This approach is very advantages when the leaf openings vary over a wide range, i.e. the dose vary a lot between the leaf openings.

Screenshot of Leaf Profiles chart

Use the Icon for normalization mode button. button to select the normalization mode for the profiles.

Relative analyzed leaf width range (%): Width of the averaging region around leaf center relative to leaf width used to generate the profile.

When ever the profile data or analysis method is changed, FilmQA Pro calculates the leaf opening width values for the selected beam and leaf index range as shown below.

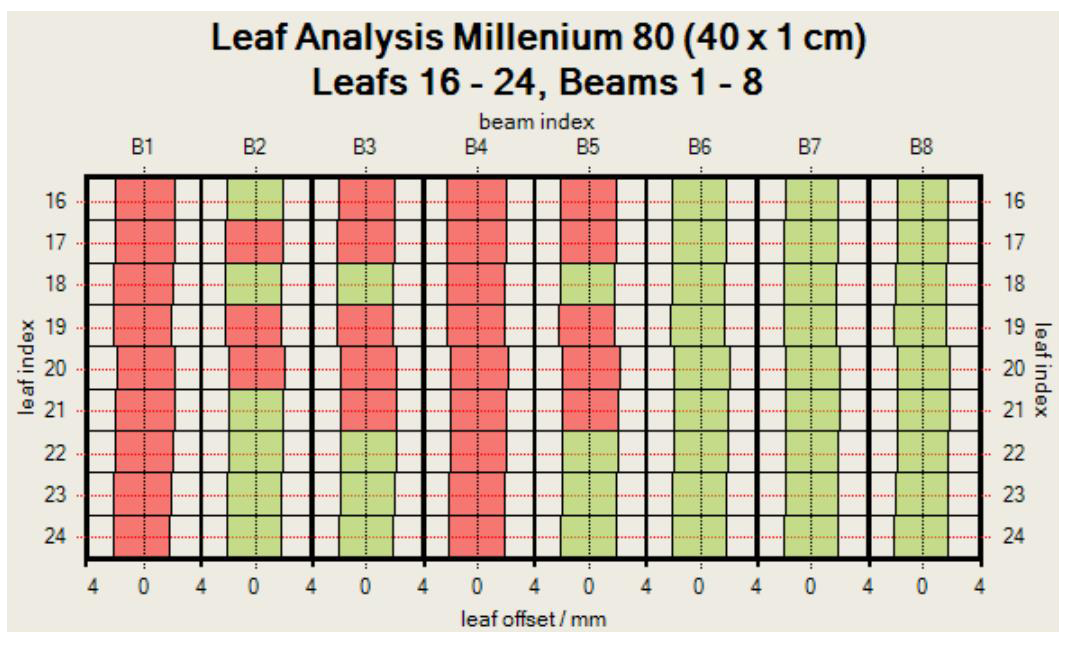

Chart of Leaf Analysis Millenium 80 (40 x 1 cm)

The color of the depicted opening depends on width and bias of the specific leaf opening. Threshold value at which the color changes can be assigned using the context menu of the chart (right click chart).

Report

When the analysis is completed, select the report tab to summarize the results for the records.

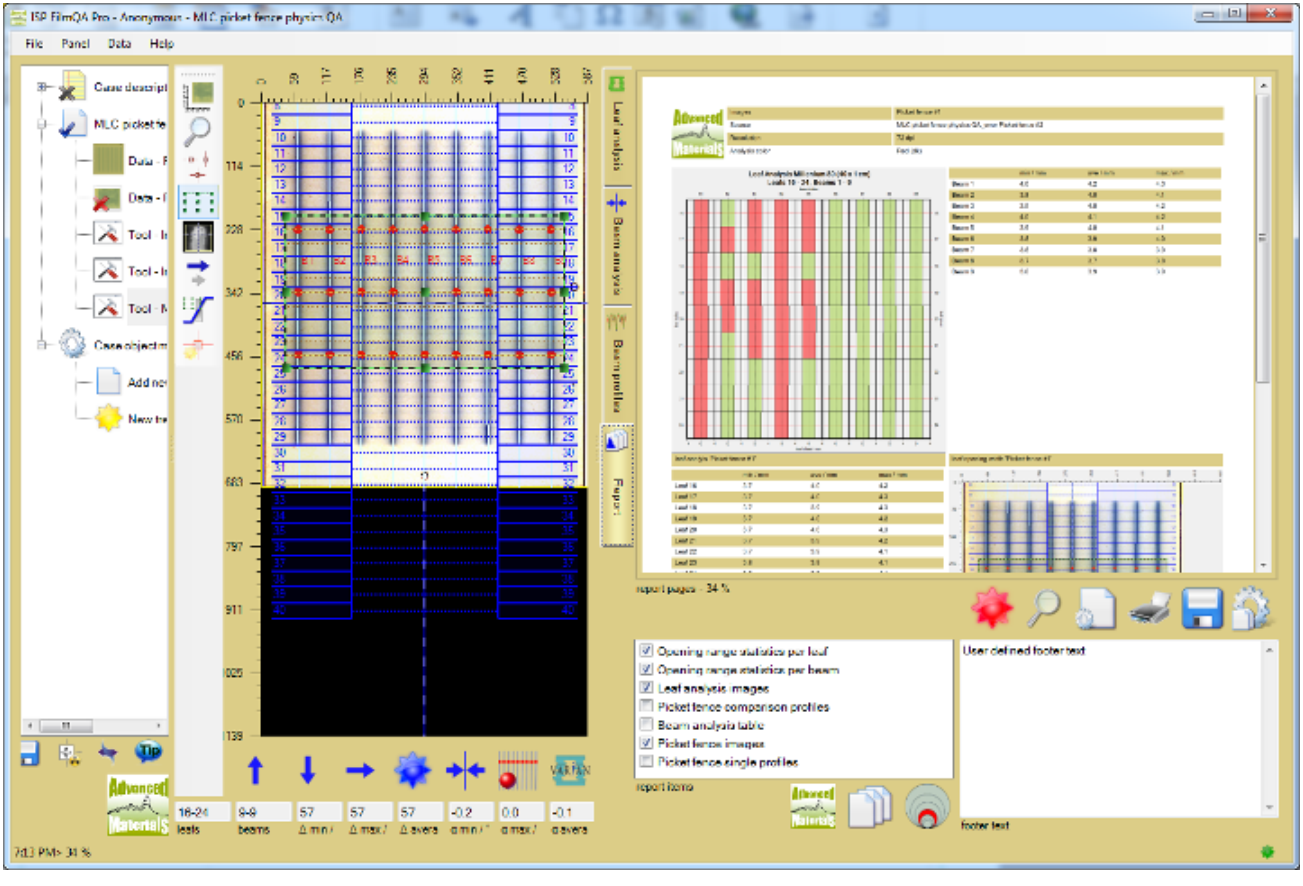

Screenshot of Picket Fence Test Summary.

Enable the items that should be included in the report and add the information to identify the test in the ‘footer text’ box. Use the Icon for save button button to save the report as file (e.g. pdf file).
