Gafchromic™ quick phantom™ device

The Gafchromic™ quick phantom™ device was designed for fast and accurate end-to-end testing for patient treatment verification. Gafchromic™ EBT3P film is customized EBT3 film for use in the quick phantom™ device. The EBT3P film has holes in the film that correspond to the pins in the quick phantom™ device to prevent film movement and provides automated registration. The quick phantom™ device offers unprecedented speed, convenience and accuracy for Radiation Therapy QA procedures using radio chromic films.

quick phantom™ device features:

  • body- two slabs of Plastic Water water-equivalent to within 1% from 160 keV to 25 MeV dimensions: 29 x 32 x 5 cm3

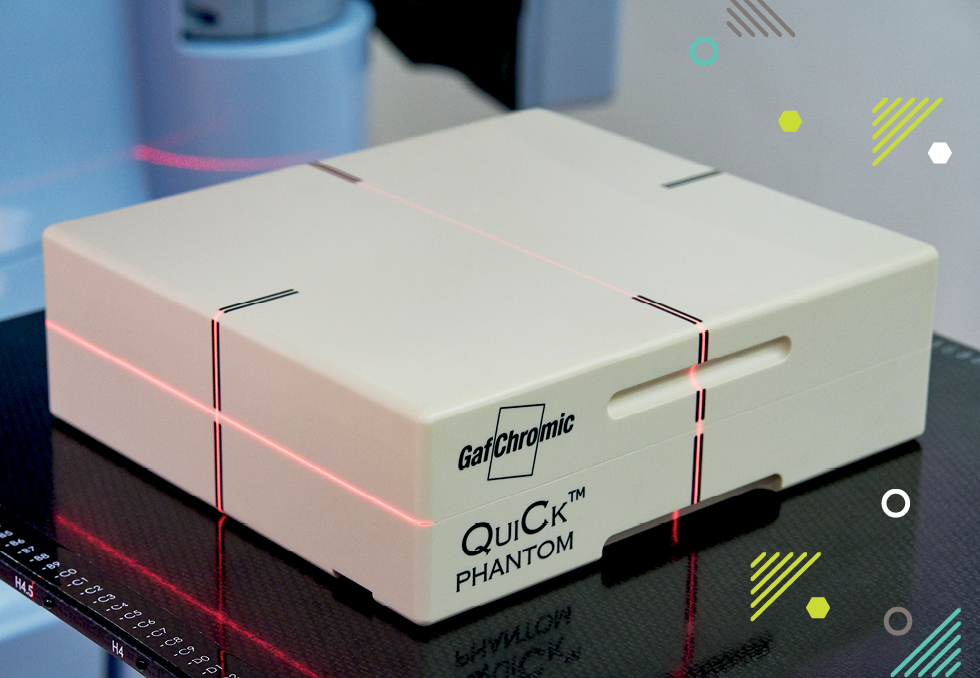

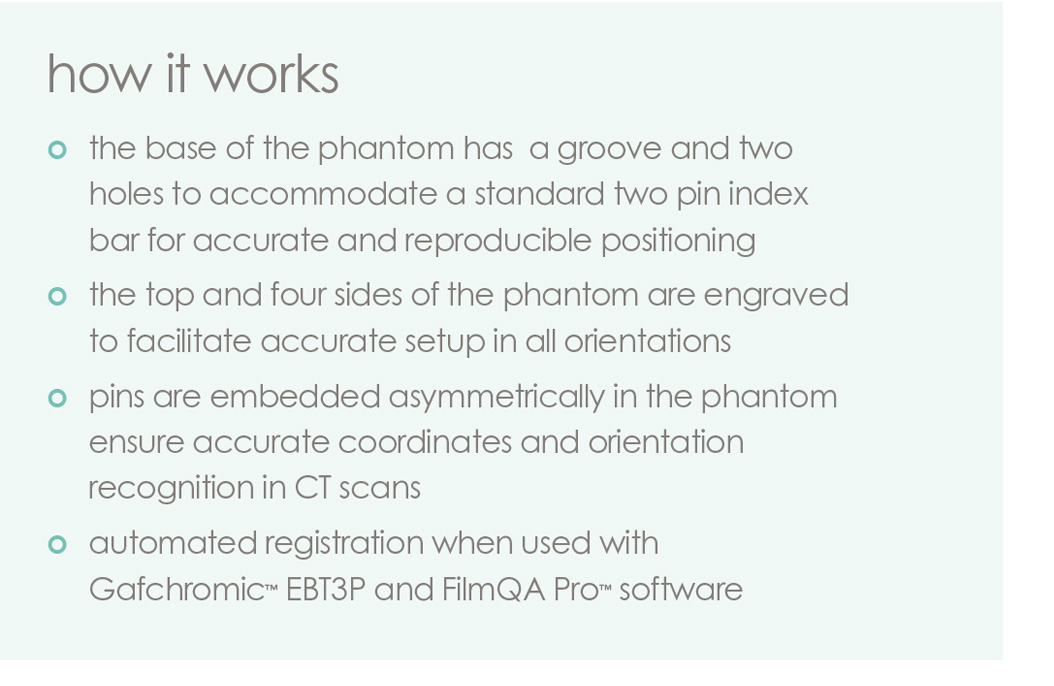

  • positioning –with a standard two-pin indexing bar the groove located on the bottom of the quick phantom™ device, it provides quick, accurate and repeatable positioning of the device on both CT and treatment couches

  • film position is indexed to the treatment couch allowing the comparison of the dose measurements to the treatment plan to be regarded as true end-to-end QA test of the treatment system

  • asymmetric features and fiducial patterning for correct orientation recognition in TPS

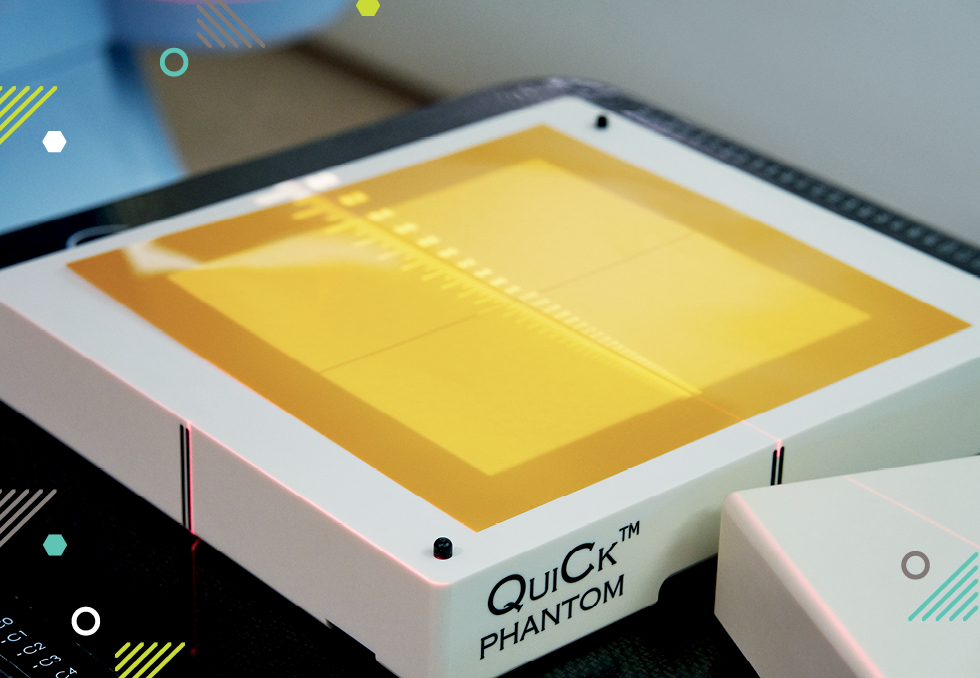

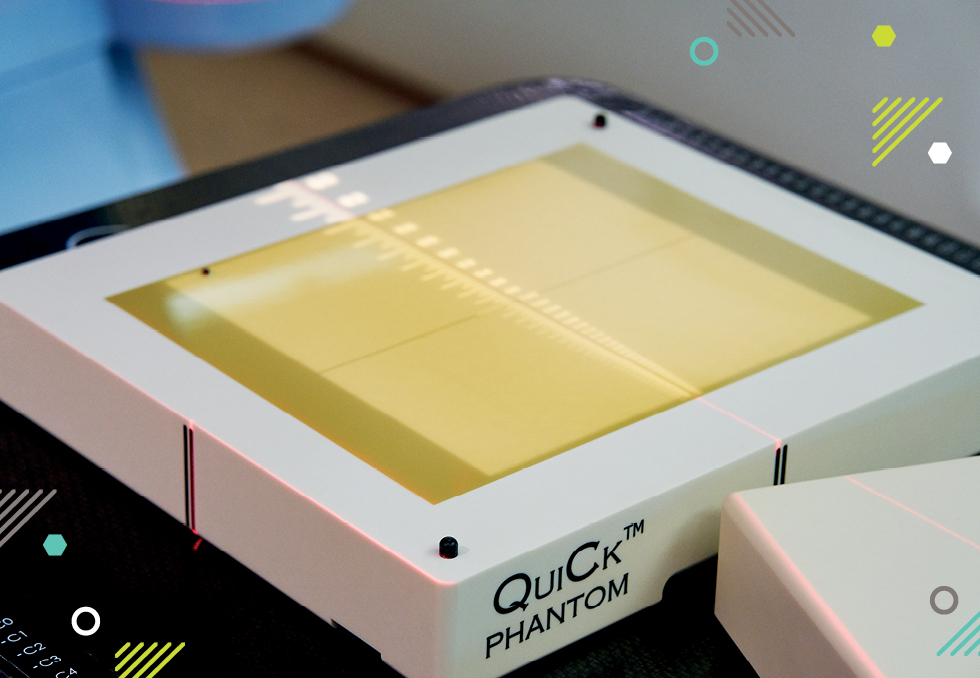

  • film positioning pins – The asymmetric placement of two film registration pins in the quick phantom™ device corresponds with the two-hole pattern on Gafchromic™ EBT3P film means there is only one possible orientation for the film in the phantom

  • FilmQA Pro™ software has a unique feature that recognizes the fiducial pattern on the film image and automatically aligns it with the treatment plan for quick and accurate analysis and facilitates end-to-end QA test of the treatment system

  • The quick phantom™ device is also available with an optional 2 cm thick slab of Plastic Water for pin-point Ion Chamber insertion
    • this slab is cut to lock to center while sandwiching the film. Available for A14, A1SL, and 31016 ion chamber
Sloan_Print_72dpi_RGB4.jpg Sloan_Print_72dpi_RGB5.jpg

product format product code
Gafchromic™ quick phantom™ device  starter package 29 x 32 x 5 cmwith one box of EBT3P 842062
Gafchromic™ quick phantom™ device  Insert for Ion Chamber A14 11.417” x 12.598” 864037
Gafchromic™ quick phantom™ device  Insert for Ion Chamber A1SL 11.417” x 12.598” 864038
Gafchromic™ quick phantom™ device  Insert for Ion Chamber 31016 11.417” x 12.598” 862903
Gafchromic™ EBT3P 8x10”; 25 sheets 841975
